UID-G6 Dual x2

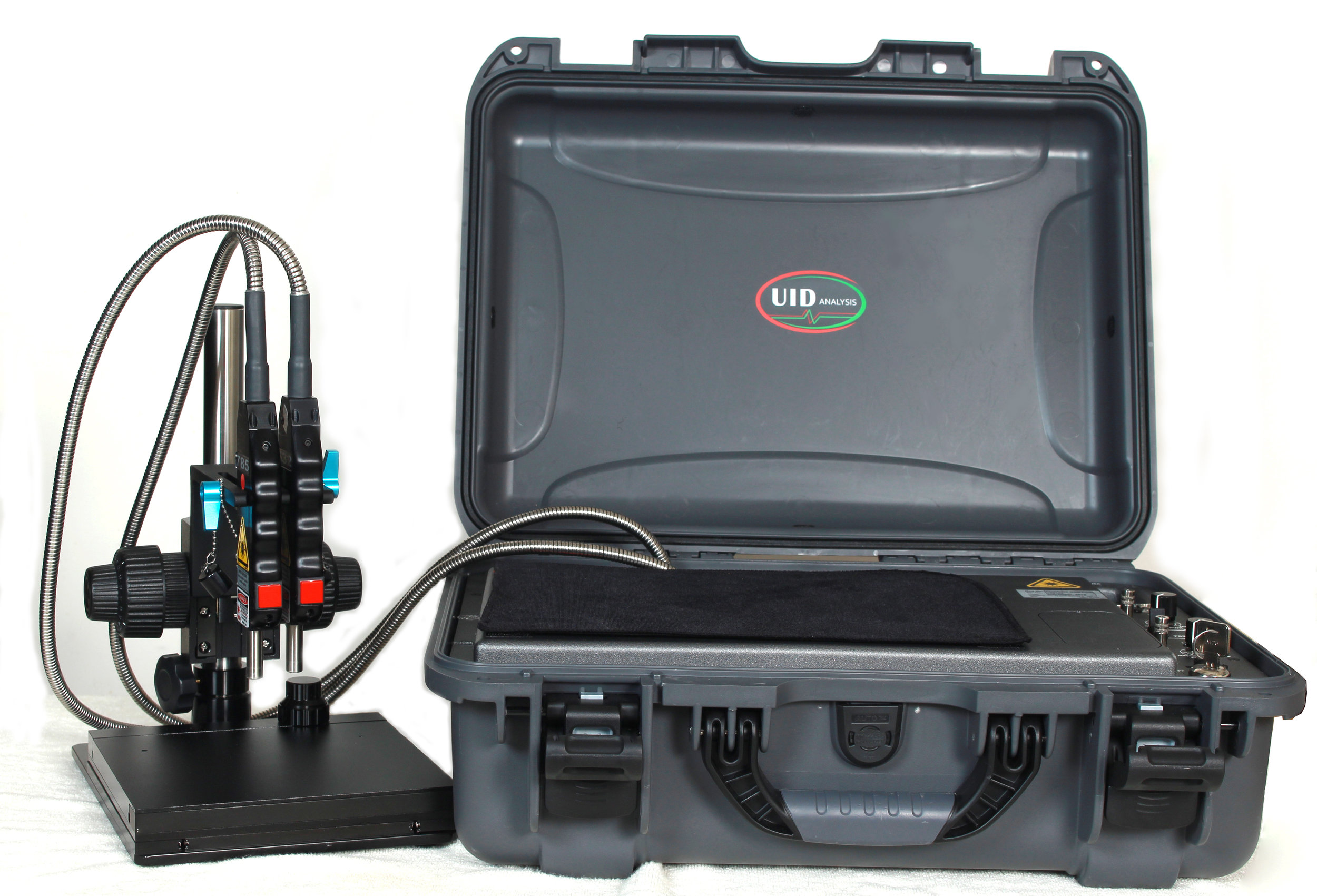

ProTT-UID-G6 Dual Series

  • Highest Sensitivity (S/N R.)

  • Total Database / Solutions

  • No LNT on Samples - Raman & PL at same time

  • Dual Excitation- 785nm & 532nm

  • Portable & Lab. Dual Use

Highlights

  • High sensitivity- High S/N ratio - High detection rate

  • Best Performance/Cost

  • Integrated GIA list Gems & Mineral database / solution

  • Raman & PL excitation at same times

  • Can do unlimited variety of qualitative analysis

  • Can test Symbiosis / secondary minerals

  • Can connect with Micro system

  • Can test Gemstone inclusions or artificial enhancement

Specifications

785nm Excitation 532nm Excitation
Excitation Source

Laser line width <0.15 nm

Laser Power: 0~300 mw with Laser Shutter Control

Estimated Laser Lifetime:>5,000 Hours

Laser line width <0.15 nm

Laser Power: 0~50 mw with Laser Shutter Control

Estimated Laser Lifetime:>5,000 Hours
CCD Spectograph

TEC cooled CCD camera (Typical cooling ability up to - 30°C)

Pixel Resolution : 2.2 cm-1 / pixel

Spectral Coverage : 100 ~ 3,300 cm-1 & 250 ~ 2,350 cm-1

TEC cooled CCD camera (Typical cooling ability up to - 30°C)

Pixel Resolution : 2.9 cm-1 / pixel

Spectral Coverage : 250 ~ 4,200 cm-1 & 250 ~ 5,700 cm-1
S/N R / Sensitivity

S/N R: > 16,000

Measure Nitrate up to 50 ppm in 5 sec.
Immersion Fiber Optic Probe

Working Distance: 7mm (Standard)

Rayleigh Rejection: O.D. >8 at Laser Wavelength
System Software

System Control and Data Collection software

Auto X-axis and Y-axis calibration function

Spectral database search and management or on-line process

System Operation Temperature 0°c ~ 40°c
Dimensions 475mm x 375mm x 180mm
Power Requirements Universal AC/DC and Lithium Battery
System Warranty One Year for Parts and Labor
